Garments Pad Printing Machine

Features of this machine: 1. Control and setting: PLC plus touch screen control is adopted, and the function parameters are flexibly set 2. Loading and unloading system: Automatic loading and unloading system is adopted, which is fast and accurate 3. Dust removal method: The dust removal system adopts SP ion wind rod to treat the surface of the workpiece 4. Conveying device: The robot automatically conveys the workbench, which runs smoothly and has precise positioning 5. Paste head adjustment: Independent rubber head up and down stroke and speed adjustment 6. Inking system: The sealed oil cup inking system is adopted to save ink, clean and environmentally friendly 7. Printing function: It can print different colors and patterns to meet diverse market needs 8. Component configuration: Precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control system: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Loading and unloading system: Automatic lifting loading and unloading system, fast and accurate, improving automation 3. Conveying workbench: tank belt conveying workbench, precision divider drive, stable operation and precise positioning 4. Rubber head setting: independent head can adjust the stroke and speed, equipped with automatic glue cleaning device 5. Inking system: sealed oil cup inking system is adopted to save ink, clean and environmentally friendly 6. Drying system: equipped with hot air drying system, instant drying of printed patterns 7. Component guarantee: precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control mode: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Loading and unloading system: automatic lifting loading and unloading system, fast and accurate,  improving automation 3. Conveying workbench: tank belt conveying workbench, stable operation and precise positioning 4. Capping system: elastic rubber roller capping system, no damage to the surface of the cap 5. Inking and induction: can select sealed oil cup or open ink tray for inking, equipped with automatic glue cleaning device 6. Drying and unloading: independent heating system is used to dry the printed pattern 7. Component configuration: original imported precision pneumatic components and solenoid valves are used

Features of this machine: 1. Adopting imported precision servo combined with linear guide rail transmission, low noise, smooth operation.2. PLC controls various actions, making performance more stable, operation simpler, and maintenance simpler.3. Printing speed is fast, and no matter how complex the pattern is, it can transfer 5 products per minute.5. Suitable for products with smooth or uneven surfaces, with a wider range of applications than screen printing.6. The consumption cost of ceramic production (including pigments and oils) is much lower than that of screen printing and hand-painted colors. 7. Suitable for a wide printing area, ranging from 50mm to 400mm.

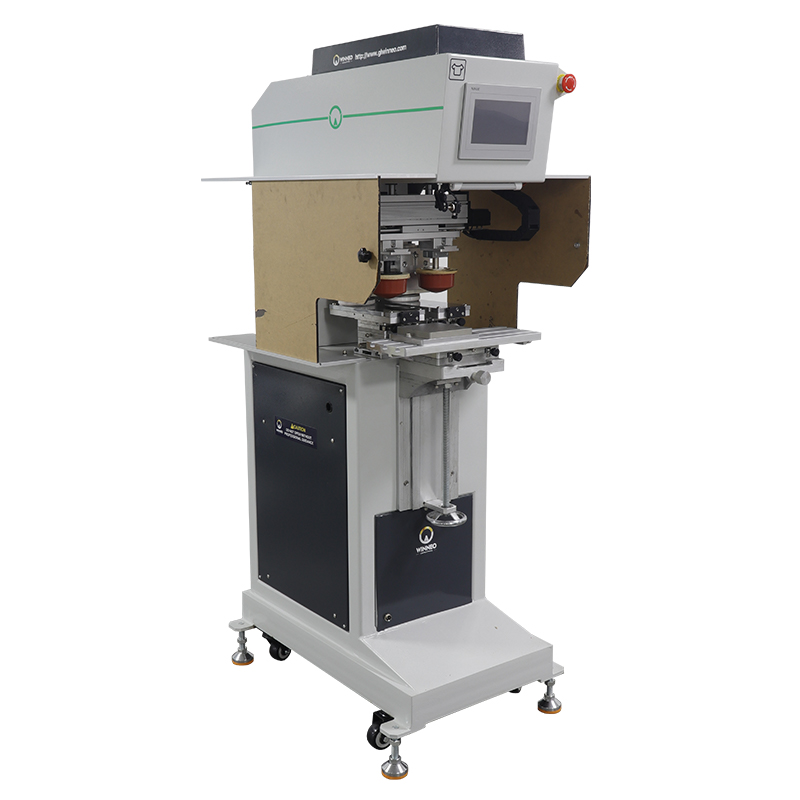

CONFIGURED AROUND YOUR PRODUCT Can This Machine Print Your Product? The WPC/A11-2C is a full-electric two-color pad printing platform. WINNEO matches the fixture, silicone pad, printing plate, ink and process settings to your product after sample confirmation. APPLICATION 01 Fabric & Tagless Labels Print neck labels, care information, logos and graphics directly onto fabric. APPLICATION 02 LEGO Minifigures Print facial details, logos and fine graphics on heads, bodies and limbs. APPLICATION 03 Watch Dials Print logos, scales, text and fine decorative details with precise registration. ±0.02 mm Printing Accuracy Up to 6 Colors Printing Capability 1500 pcs/hr Maximum Speed No Compressor Full-Electric Drive Full-Electric Servo Drive   |   Shuttle Pad   |   Custom Fixtures   |   Multi-Language Touchscreen PLC Get a Configuration for Your Product Prepare your product photos, dimensions, material, artwork, print size, number of colors and required output. Choose Your Next Step Below Need a Price? When your product and printing requirements are clear, click GET A FREE QUOTE below. Not Sure About Compatibility? For help with fixtures, silicone pads, plates, inks or sample testing, click TALK WITH EXPERT below.
