Semi-automatic Standard Pad Printing Machine
Home Pad Printing Semi-automatic Standard Pad Printing Machine

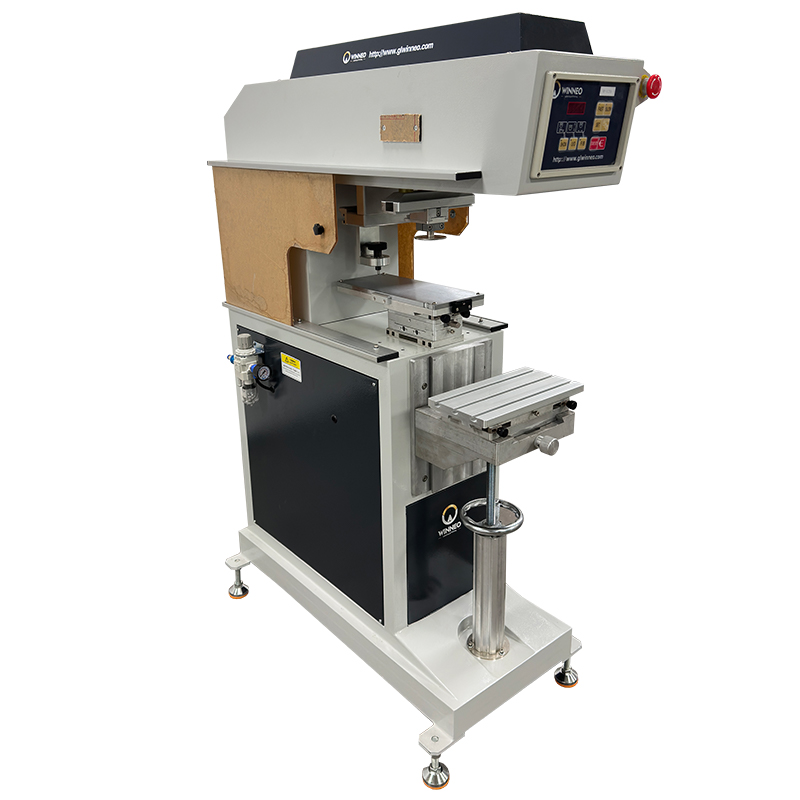

Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine

Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO
Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO
Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO
Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO
Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO
Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine - WINNEO

Semi-automatic Single Color Standard Ink Cup/Open Tray Pad Printing Machine

Features of this machine:

  • Thickened steel plate for the fuselage ensures stable machine operation.
  • High-precision CNC-machined components enable high-accuracy equipment performance.
  • Original FESTO/SMC brand components guarantee extremely low failure rates.
  • WINNEO's full-chain QC system and user inspection standards ensure 100% normal commissioning of equipment.
  • Strict packaging processes and implementation standards ensure safe transportation without worries.
  • 24/7 after-sales service response provides hassle-free support for global users.
Get A Free Quote
Talk With Expert

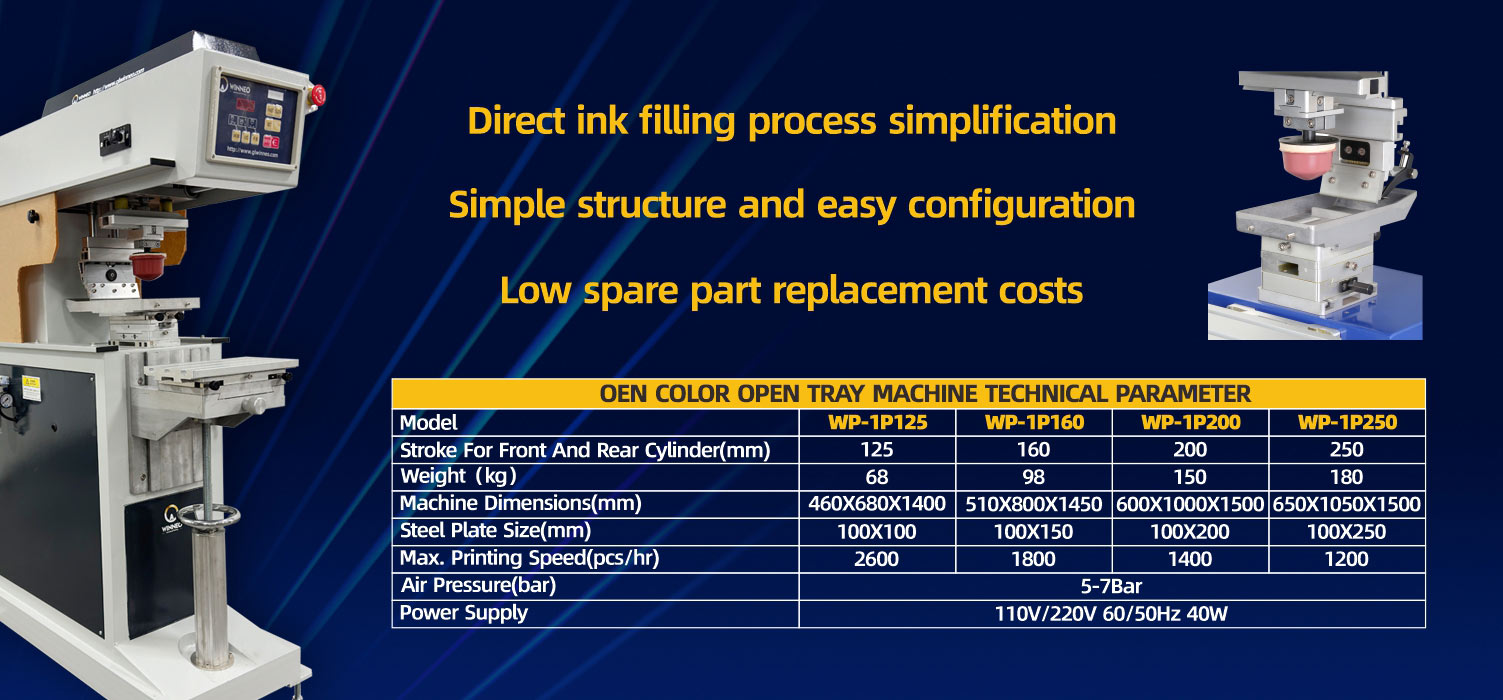

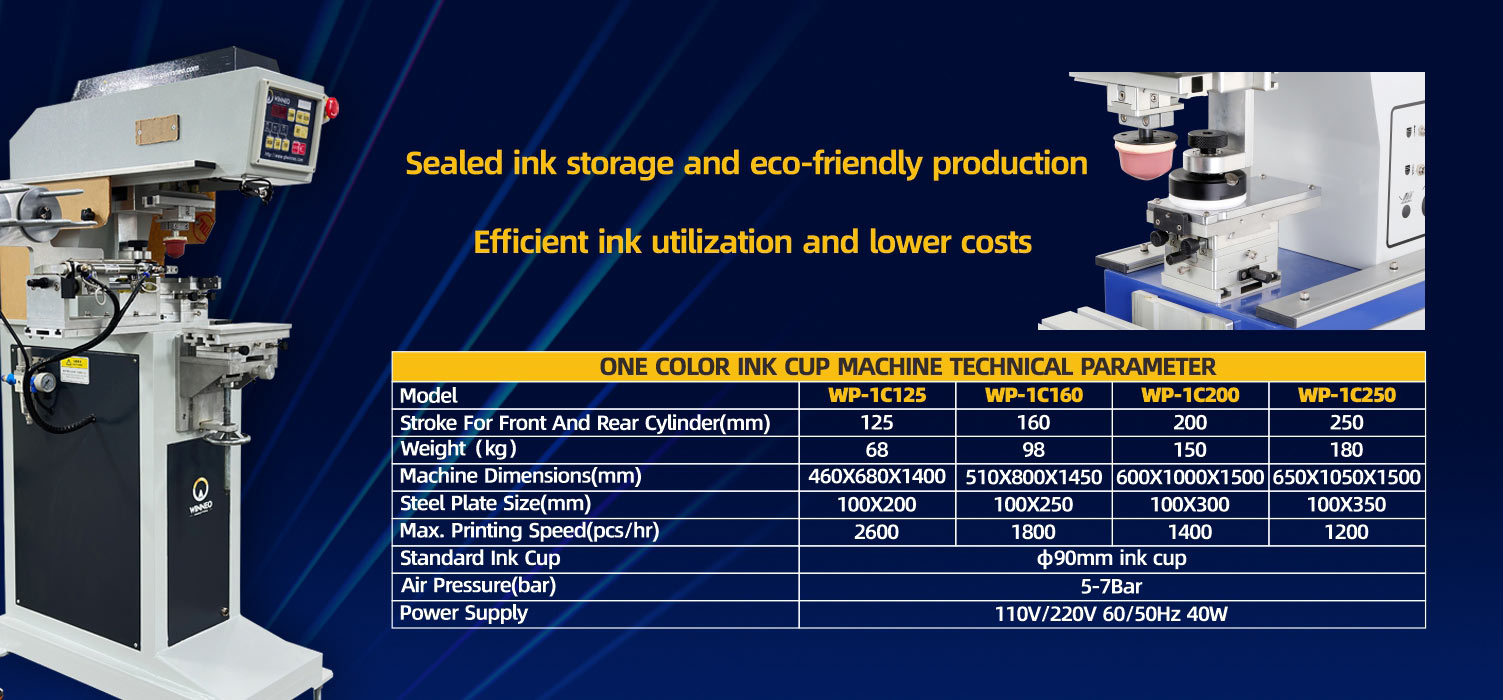

Technical Parameters



THE TECHNICAL PARAMETER
Model WP-1C125 WP-1P125 WP-1C160 WP-1P160 WP-1C200 WP-1P200 WP-1C250 WP-1P250
Stroke For Front And Rear Cylinder 125 160 200 250
Weight（kg） 68 98 150 180
Machine Dimensions（mm） 460X680X1400 510X800X1450 600X1000X1500 650X1050X1500
Can Be Equipped With Safety Protective Covers √ √ √ √
Can Be Equipped With Hot Air Drying √ √ √ √
Can Be Equipped With Cleaning System √ √ √ √
Steel Plate Size（mm） 100 × 200 100 × 100 100 × 250 100 × 150 100 × 300 100 × 200 100 × 350 100 × 250
Maximum Printing Speed (pcs/hr) 2600 1800 1400 1200

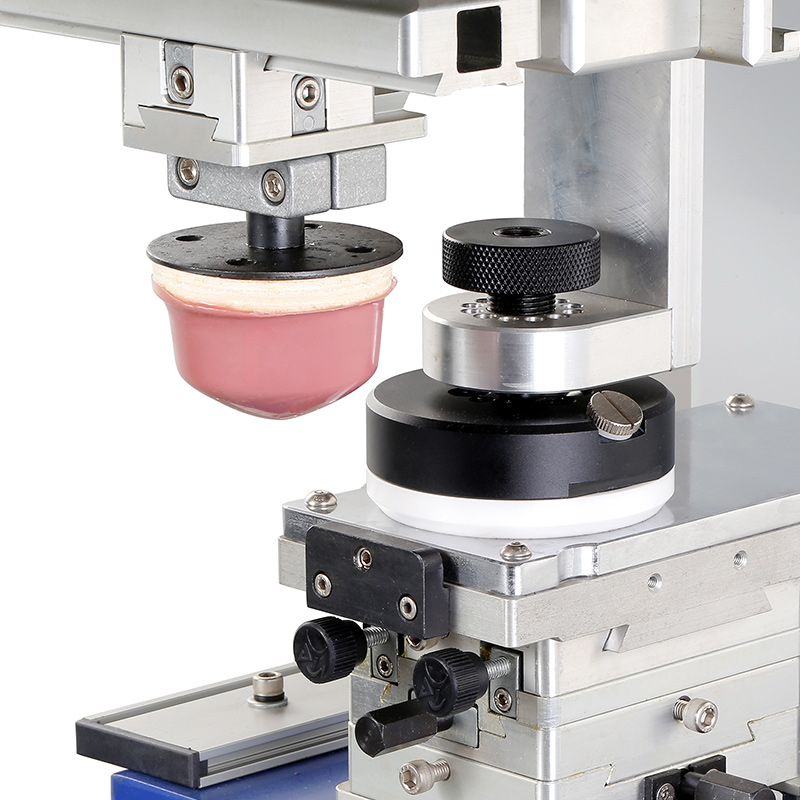

Standard Ink Cup Φ90 mm ink cup
Air Pressure（bar） 5–7
Power Supply 110V/220V 60/50Hz 40W
Print Head Modes Single-color Single-head and Single-color Dual-head Designs









Optional Features

  • #

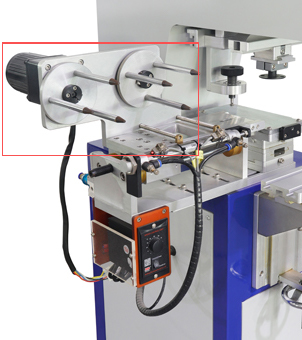

    Cleaning System
    It can remove excess ink from the rubber head, prevent residual ink from affecting the next printing, and ensure clean pattern printing.
  • #

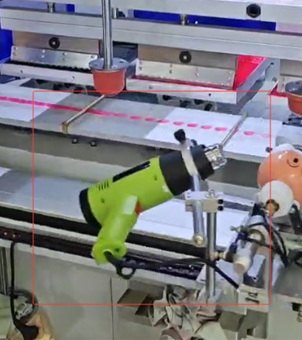

    Drying System
    It can rapidly cure ink, prevent smudging and bleeding, boost efficiency, reduce defects, and ensure printing quality and productivity.
  • #

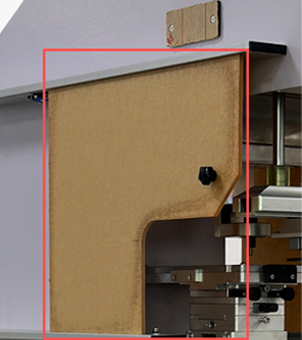

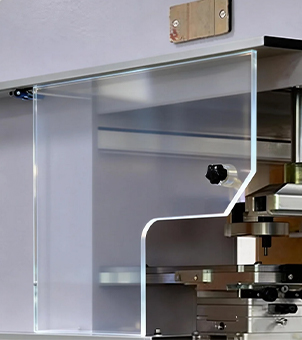

    Safety Door
    It can ensure the safety of operators, protect the equipment, and maintain stable printing processes.









FAQ



1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
