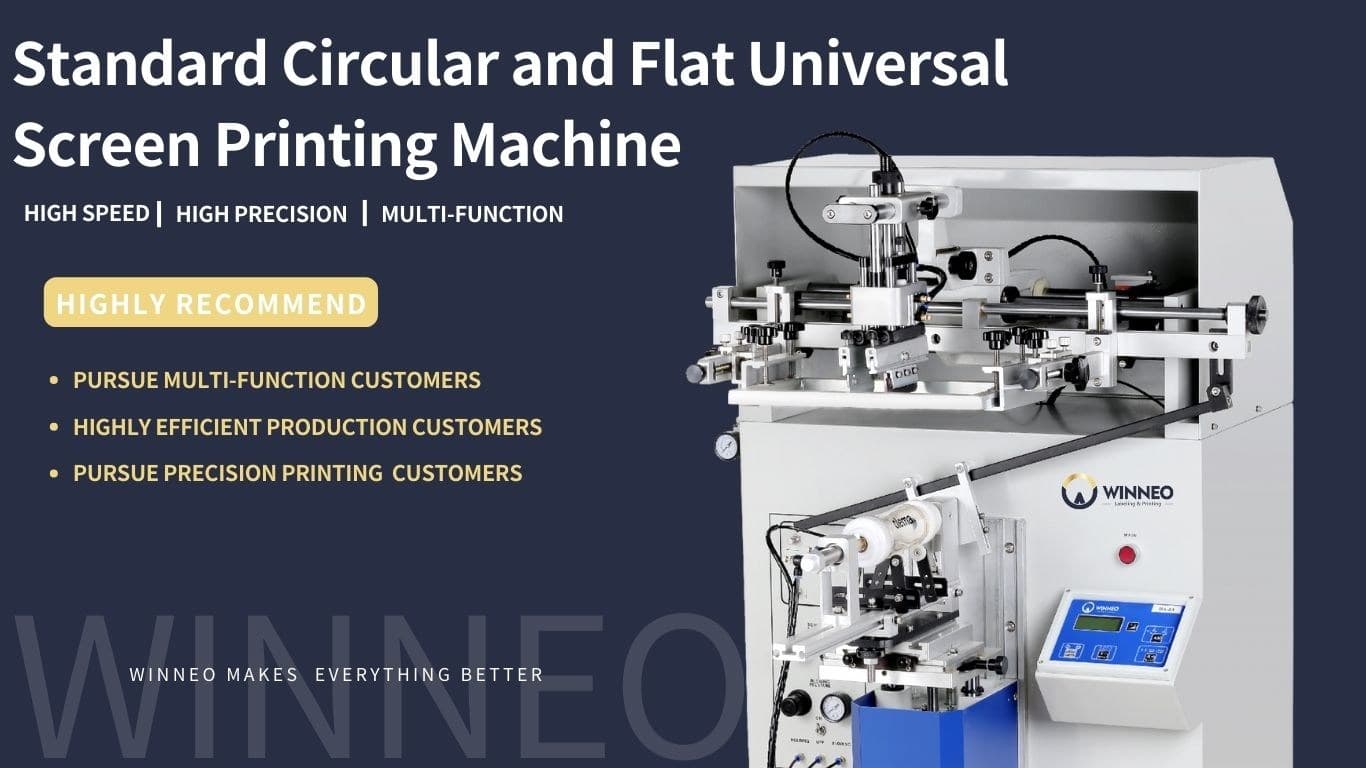

WS-RF/20A Standard Circular and Flat Universal Screen Printing Machine
Features of this machine:
1. Wide range of applications: Suitable for printing all kinds of cosmetics, utensils, stationery, cups, gifts, wine bottles and other containers.
2. Strong compatibility: Can print on products with different shapes, such as round, oval, cone, flat, etc.
3. Fast speed with simple operation: The microcomputer board controls various functions and actions, with fast calculation speed, and it is easy to operate through buttons.
4. Humanized design: The machine can be adjusted to meet the printing requirements of different products, such as printing stroke, speed, workbench, mesh frame, etc.
Item No :
WS-RF/20AOperation :
AutomaticContainer Shape :
RoundPower Supply :
220V 50HZPayment :
TT, PayPal, Visa
This standard round and flat universal screen printing machine is designed for the surface printing needs of diversified container products, including cosmetics, electrical appliances, stationery, cups, gifts and wine bottles. Its wide applicability is due to its flexible printing function; whether it is flat, round or curved, it can achieve high-quality printing effects.

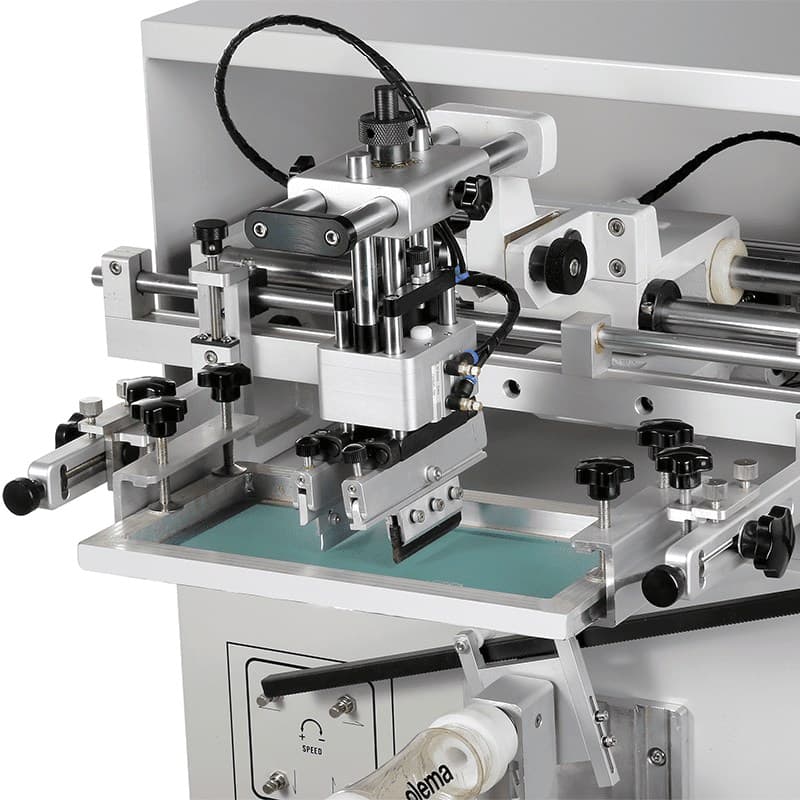

In terms of control, the equipment uses a microcomputer control panel, and various functions and actions are realized through key operation, ensuring fast operation speed and easy operation. The printing stroke and speed can be adjusted to meet the printing requirements of different products. The scraper printing pressure is balanced to ensure the stability of printing quality. The lifting design of the workbench is smooth and fast, which improves production efficiency.

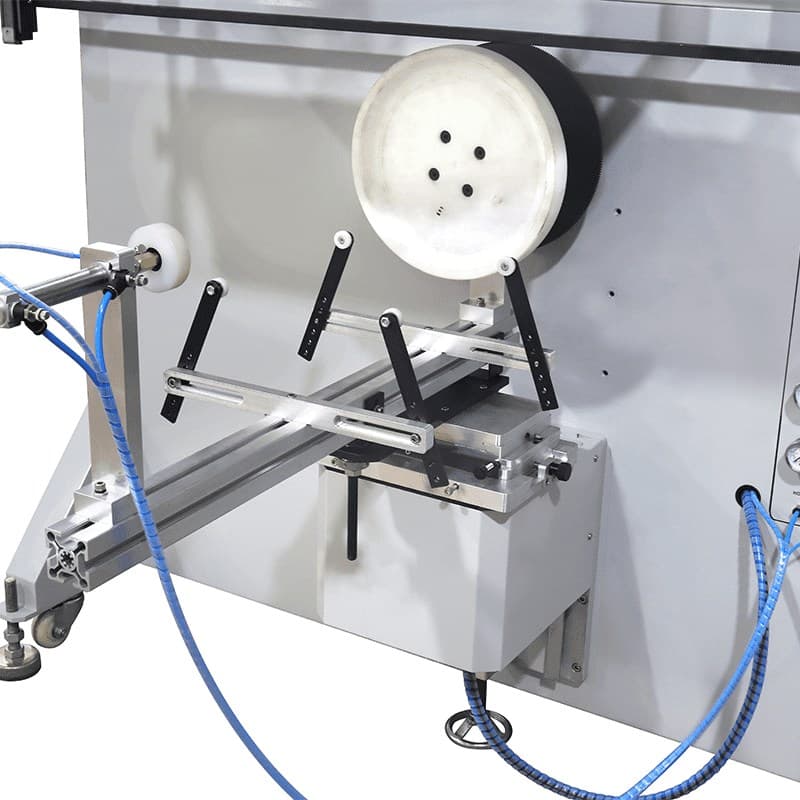

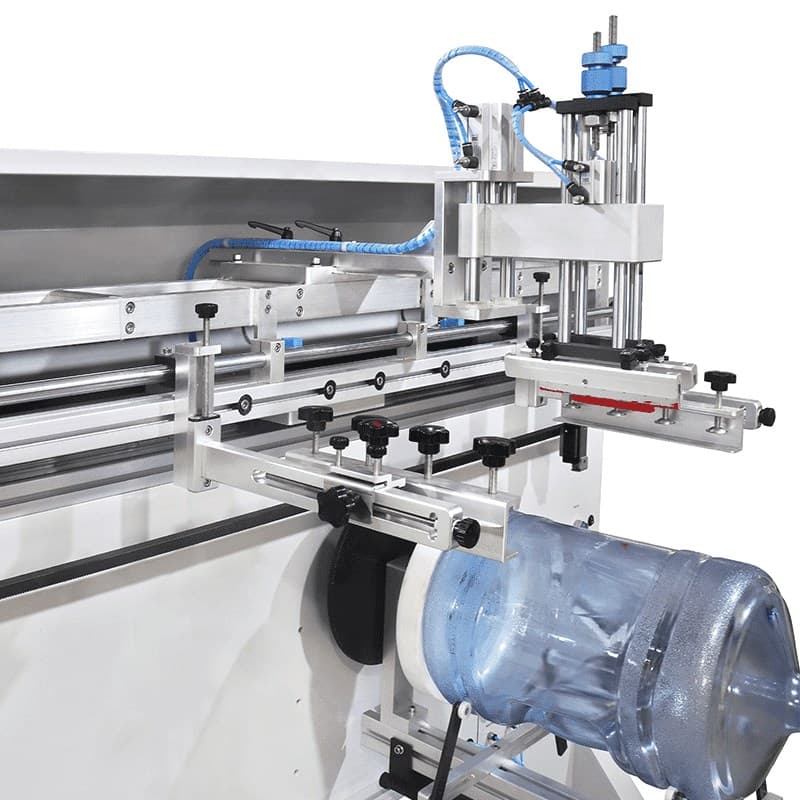

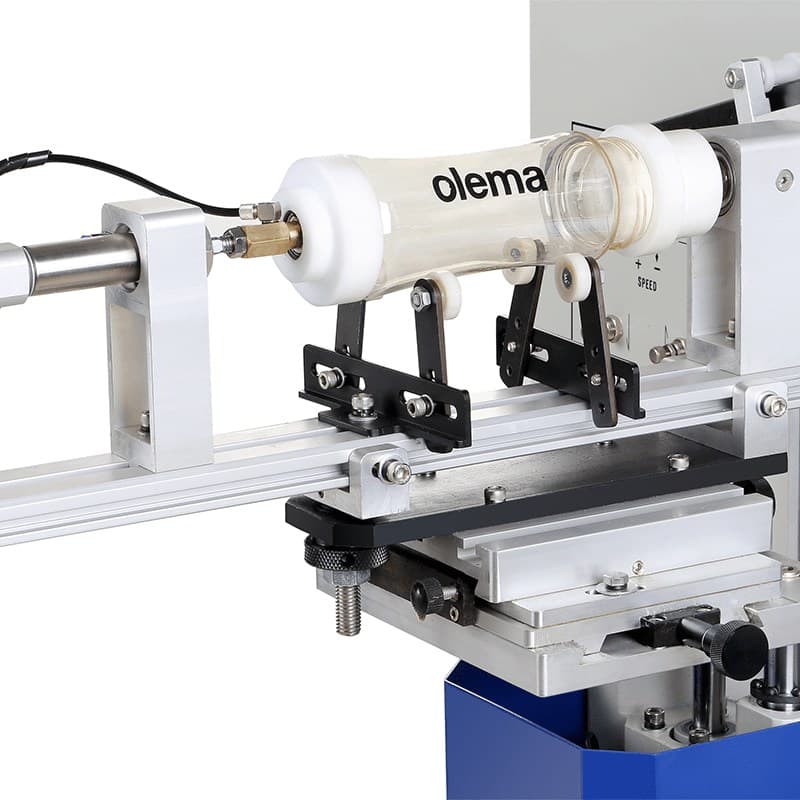

In order to meet the precise printing needs of different products, the workbench and screen frame are equipped with fine-tuning functions of up and down, horizontal, vertical and angle. This humanized adjustment design enables operators to easily achieve fine positioning and adjustment to ensure the accuracy and consistency of printing. The overall performance of the equipment is stable and suitable for production environments with high requirements for printing quality and efficiency.
Technical Parameters
| Model | WS-RF/20A | WS-RF/30A | WS-R/40A | WS-R/50A | |
| Printable shapes | Round | ✓ | ✓ | ✓ | ✓ |
| Oval | ✓ | ✓ | ✓ | ✓ | |
| Cone | ✓ | ✓ | ✓ | ✓ | |
| Flat | ✓ | ✓ | - | - | |
| Maximum printing area (mm) | 250X170(φ75) | 350X200(φ110) | 630X200(φ200) | 1000X300(φ300) | |
| Maximum printing speed (pcs/hr) | 1800 | 1200 | 900 | 700 | |
| Weight(kg) | 100 | 145 | 170 | 260 | |
| Machine dimensions | 880X750X1250 | 880X800X1250 | 1100X1150X1350 | 1650X1300X1400 | |
| Air Pressure(bar) | 4~6Bar | ||||
| Voltage | 220V 60MHz 50W | ||||
Application
Standard Universal Screen Printing Machine is suitable for printing on flat and round surfaces of various container products such as cosmetics, electrical appliances, stationery, cups, gifts, wine bottles, etc.
• Perfect for labeling personal care bottles accurately
• Ensures top prints for daily packaging essentials
• Suit for varied cosmetic product shapes
• Ensures stable, precise prints on diverse surfaces
• Perfect for food, beverage, and personal care labeling
• Delivers high-quality, precise prints for packaging
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information, and we will give you the most satisfactory answer.
