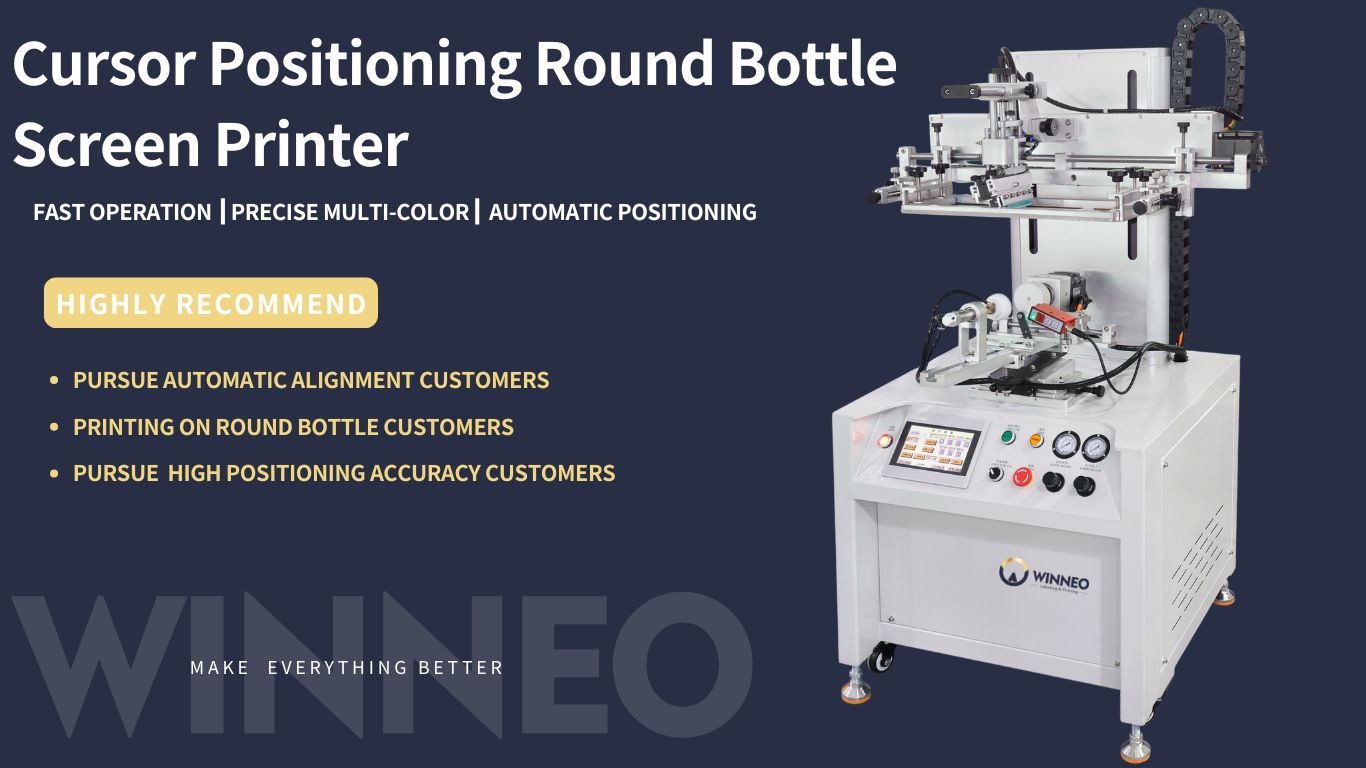

WS‐R30A/3S‐CS‐Cursor Positioning Curved Screen Printer

WS‐R30A/3S‐CS‐Cursor Positioning Curved Screen Printer

Features of this machine:

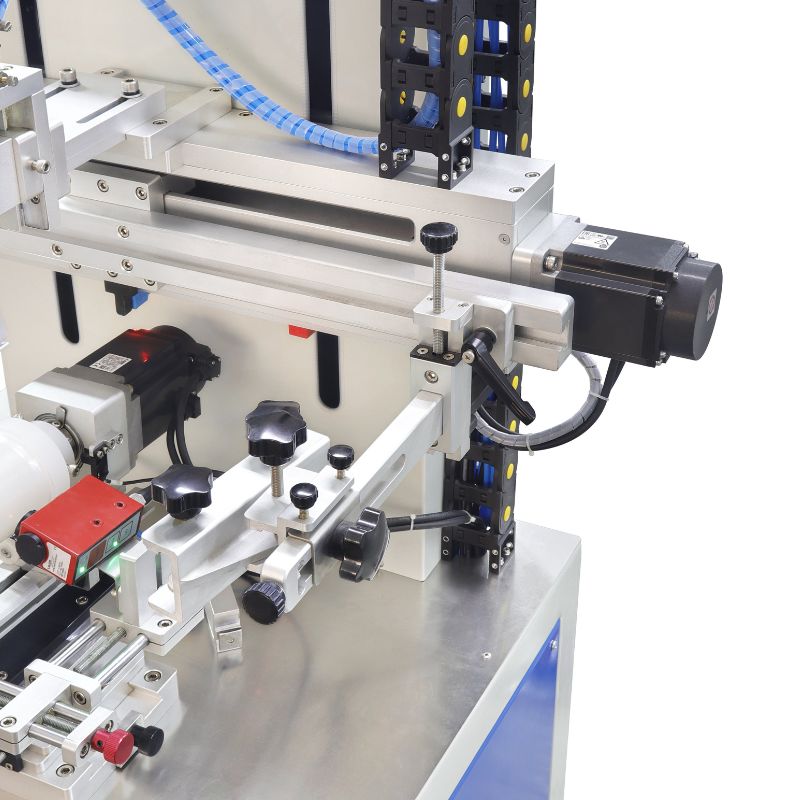

1. Servo-Driven PositioningElectric servo cursor for precise, repeatable alignment on curved surfaces

2. Auto Multi-ColorFast, micron-accurate color switching without manual realignment

3. High Precision & SpeedConsistent, detailed prints at high throughput

4. Compact FootprintFull screen-printing line fits in small workshop spaces

5. Micro-Adjustable Mesh ArmFine-tune controls for ultra-precise print registration

6. Optional configuration: Safety protection cover, hot air device, glue head cleaning device can be installed

7. Quick Setup & ChangeoverSimplified commissioning and maintenance for minimal downtime

Custom Large Drum Pattern Print Equipment

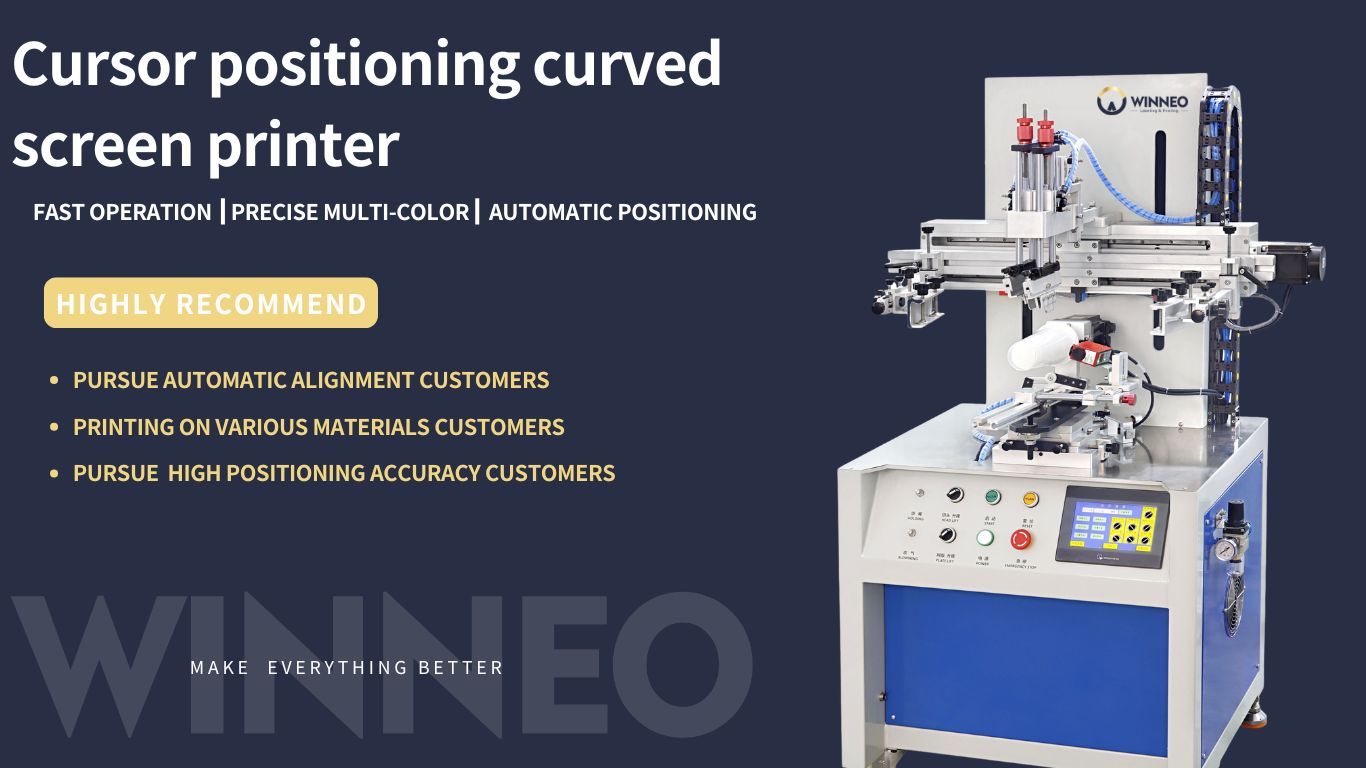

WS‐R30A/3S‐CS Cursor Positioning Curved Screen Printer is a high-precision, high-efficiency automatic curved-surface screen printing machine engineered for modern production needs. At its core is an electric, servo-driven cursor positioning system that delivers rapid, multi-color alignment and micron-level print accuracy.

Fast, Stable Operation: Capable of forming a compact screen-printing line within limited workshop space, it maintains consistent high speeds and reliable performance even under continuous use.

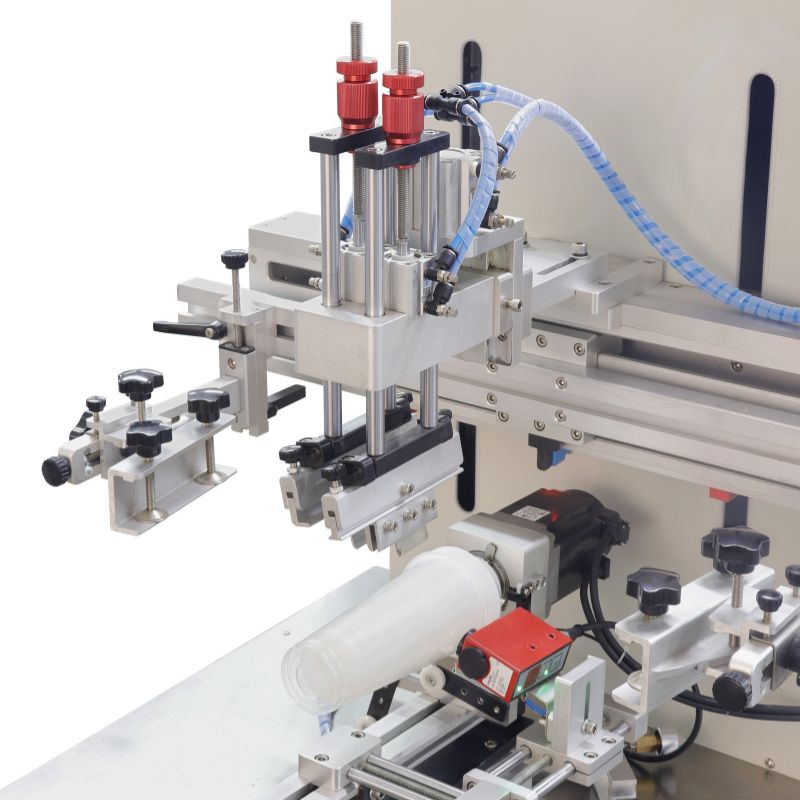

Micro-Adjustment Mesh Arm: Integrated fine-tuning on the screen arm simplifies setup and calibration, ensuring each print aligns precisely with your design.

Automatic Positioning: Eliminates manual alignment, dramatically reducing setup times and operator intervention.

Ideal for printing on cylindrical, conical, and other complex curved substrates, the WS-R30A/3S-CS streamlines production, enhances throughput, and guarantees exceptional print quality.



Technical Parameters




Model WS‐R30A/3S‐CS
Largest Printing Product Diameter φ80mm
Frame Up And Down Travel(Servo) 0~100mm
Frame Left And Right Travel(Module) 0~400mm
Largest Screen Frame Size 350×600mm
Printing Speed(Printing On Both Sides) 600 - 800pcs/hr
Thickness range of substrate 0~100mm
Weight 100KG
Machine Dimensions 730X580X1280mm

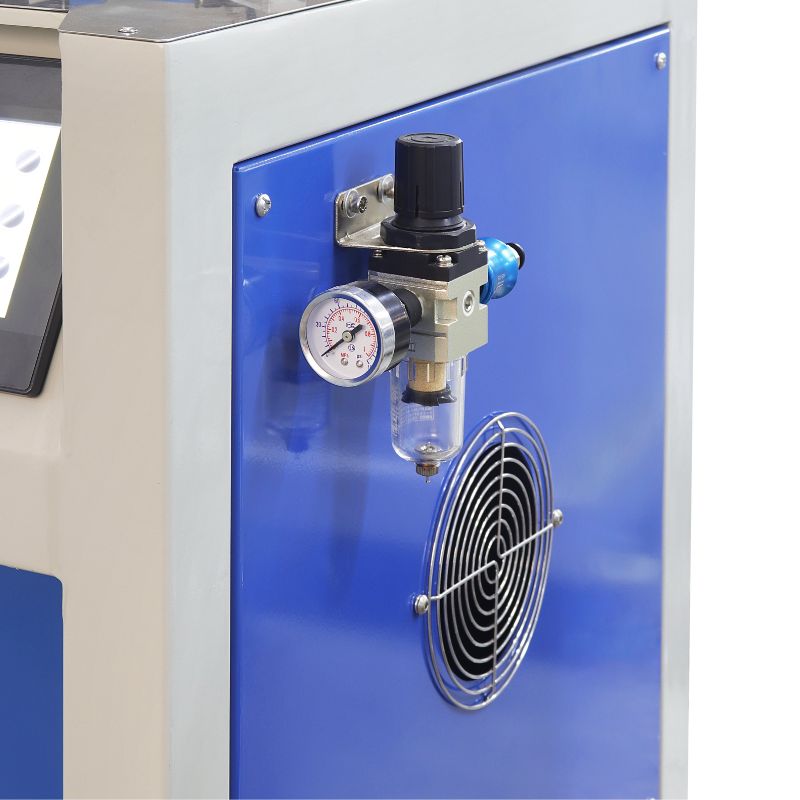

Air Pressure 0.5 - 0.7mpa
Power Supply 220V 50 - 60HZ 100W



Application




Cursor Positioning Curved Screen Printer is Ideal for printing on cylindrical, conical, and other complex curved substrates.



Durable Large Drum Container Print Machine
COSMETIC

• Suit for varied cosmetic product shapes

• Ensures stable, precise prints on diverse surfaces



Advanced Large Drum Packaging Print Equipment
MEDICINE

• Suitable for medical packaging and pharmaceutical containers

• Ensures precise, high-quality printing for clear labeling



Durable Large Drum Container Print Machine
FOOD&BEVERAGES

• Suit for food and beverage packaging

• Ensure clear text and vibrant images



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
